| Part No. | A | B | C | THREAD TYPE | TYPE |
|---|---|---|---|---|---|
| ESS-TB-02 | 16 | 50 | 44.0 | 5/8” UNF | 1 |
| ESS-TB-03 | 19 | 50 | 44.0 | 3/4”UNF | 1 |
| ESS-TB-04 | 19 | 70 | 57.0 | 3/4”UNF | 1 |
| ESS-TB-05 | 22 | 70 | 57.0 | M22x1.5 | 1 |
| ESS-TB-06 | 22 | 70 | 57.0 | 7/8" UNF | 1 |
| ESS-TB-07 | 25 | 70 | 57.0 | 1”UNF | 1 |
| ESS-TB-08 | 22 | 70 | 57.0 | 7/8" UNF | 1 |
| Part No. | Cat. | A mm | B mm | C mm |
|---|---|---|---|---|
| ESS-BUSH-01 | 1/2 | 19.4 | 25.4 | 51 |
| ESS-BUSH-02 | 2/3 | 25.4 | 31.8 | 51 |
| ESS-BUSH-03 | 1/2 | 22.4 | 28.4 | 44 |
| ESS-BUSH-04 | 2/3 | 28.4 | 37.8 | 44 |
| Cat. | D mm | d mm | H mm | NULL | NULL |
|---|---|---|---|---|---|
| 2° | 50 | 25.4 | 51 | ||
| 3°/2° | 60 | 25.4 | 51 | ||
| 3° | 60 | 32 | 51 |

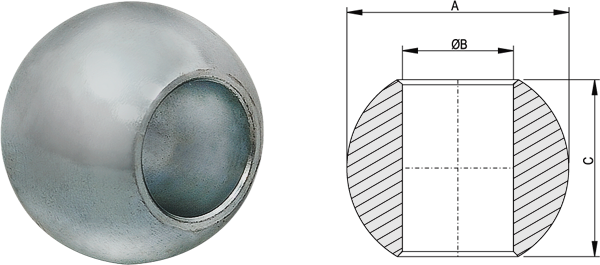

| CODE | B | A | C | NULL | NULL |
|---|---|---|---|---|---|
| ESS-BWC-01 | 16.0 | 28.0 | 20.0 | ||
| ESS-BWC-02 | 16.0 | 32.0 | 25.4 | ||
| ESS-BWC-03 | 18.0 | 44.0 | 35.0 | ||
| ESS-BWC-04 | 19.0 | 44.0 | 35.0 | ||
| ESS-BWC-05 | 22.1 | 44.0 | 35.0 | ||
| ESS-BWC-06 | 22.4 | 48.0 | 35.0 | ||
| ESS-BWC-07 | 25.4 | 48.0 | 35.0 | ||
| ESS-BWC-08 | 28.4 | 48.0 | 35.0 | ||
| ESS-BWC-09 | 25.4 | 50.0 | 38.0 | ||
| ESS-BWC-10 | 25.4 | 50.0 | 40.0 | ||
| ESS-BWC-11 | 28.4 | 50.0 | 38.0 | ||
| ESS-BWC-12 | 35.0 | 54.0 | 35.0 | ||
| ESS-BWC-13 | 22.1 | 56.0 | 35.0 | ||
| ESS-BWC-14 | 22.1 | 56.0 | 45.0 | ||
| ESS-BWC-15 | 25.4 | 56.0 | 35.0 | ||
| ESS-BWC-16 | 25.4 | 56.0 | 38.0 | ||
| ESS-BWC-17 | 25.4 | 56.0 | 45.0 | ||
| ESS-BWC-18 | 28.4 | 56.0 | 35.0 | ||
| ESS-BWC-19 | 28.4 | 56.0 | 38.0 | ||
| ESS-BWC-20 | 28.4 | 56.0 | 45.0 | ||
| ESS-BWC-21 | 37.0 | 56.0 | 38.0 | ||
| ESS-BWC-22 | 28.4 | 62.0 | 45.0 | ||
| ESS-BWC-23 | 28.4 | 63.5 | 45.0 | ||
| ESS-BWC-24 | 28.4 | 64.0 | 45.0 | ||
| ESS-BWC-25 | 28.4 | 64.0 | 54.0 | ||
| ESS-BWC-26 | 32.4 | 64.0 | 45.0 | ||
| ESS-BWC-27 | 37.1 | 64.0 | 45.0 | ||
| ESS-BWC-28 | 38.0 | 64.0 | 45.0 | ||
| ESS-BWC-29 | 40.0 | 64.0 | 40.0 | ||
| ESS-BWC-30 | SA | 85.0 | 57.0 | ||
| ESS-BWC-31 | 51.0 | 85.0 | 57.0 |

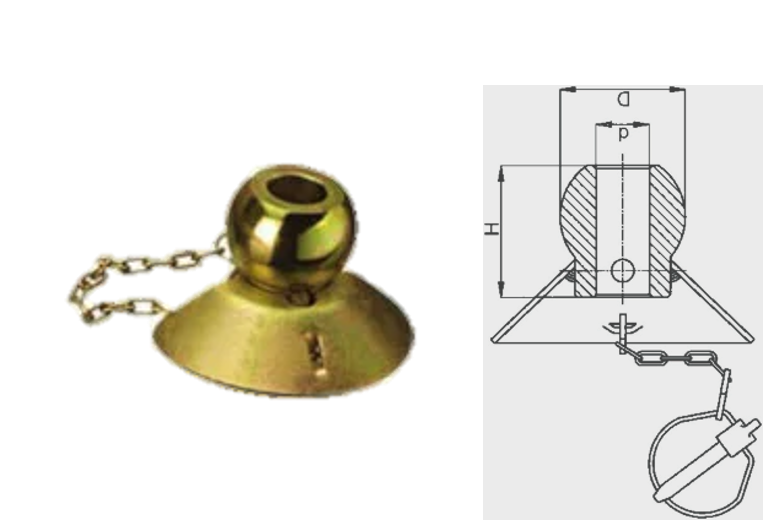

| Cat. | D mm | d mm | H mm | Other Specification |
|---|---|---|---|---|
| 2° | 56 | 28.4 | 69 | Q Pin : 11 Chain length 150 mm |
| 3°/2° | 64 | 28.4 | 72 | Q Pin : 11 Chain length 150 mm |
| 3° | 64 | 37 | 72 | Q Pin : 15 Chain length 150 mm |
| 2° | 47 | 28.4 | 25 | Q Pin : 11 Chain length 150 mm |
| Part No. | Cat. | A mm | B mm | C mm | d mm | F mm | H mm | L mm |
|---|---|---|---|---|---|---|---|---|
| ESS-TLP-01 | 1° | 52 | 45 | 125 | 19 | 22 X 2.5 | 44 | 170 |
| ESS-TLP-02 | 1° | 62 | 50 | 115 | 19 | 24 X 2.5 | 44 | 165 |
| ESS-TLP-03 | 2° | 75 | 55 | 170 | 25.4 | 27 X 3 | 51 | 225 |
| ESS-TLP-04 | 2° | 75 | 55 | 165 | 25.4 | 30 X 3 | 51 | 220 |
| ESS-TLP-05 | 2° | 80 | 55 | 165 | 25.4 | 36 X 3 | 51 | 220 |
| ESS-TLP-06 | 3° | 96 | 70 | 200 | 32 | 36 X 3 | 51 | 270 |
| PART NO. | CAT/D1-D2 | PIPE/L1 | THREAD |
|---|---|---|---|
| ESS-TL-01 | 0 – 0 | 7.1/2" | 3/4 UNC |
| ESS-TL-02 | 0 – 0 | 9.3/4" | 3/4 UNC |
| ESS-TL-03 | 1 – 1 | 7" | 1.1/8 UNC |
| ESS-TL-04 | 1 – 2 | 7" | 1.1/8 UNC |
| ESS-TL-05 | 2 – 2 | 7" | 1.1/8 UNC |
| ESS-TL-06 | 1 – 1 | 9" | 1.1/8 UNC |
| ESS-TL-07 | 1 – 2 | 9" | 1.1/8 UNC |
| ESS-TL-08 | 2 – 2 | 9" | 1.1/8 UNC |
| ESS-TL-09 | 1 – 1 | 11.1/4" | 1.1/8 UNC |
| ESS-TL-10 | 1 – 2 | 11.1/4" | 1.1/8 UNC |
| ESS-TL-11 | 2 – 2 | 11.1/4" | 1.1/8 UNC |
| ESS-TL-12 | 1 – 1 | 13" | 1.1/8 UNC |
| ESS-TL-13 | 1 – 2 | 13" | 1.1/8 UNC |
| ESS-TL-14 | 2 – 2 | 13" | 1.1/8 UNC |
| ESS-TL-15 | 1 – 1 | 14.1/2" | 1.1/8 UNC |
